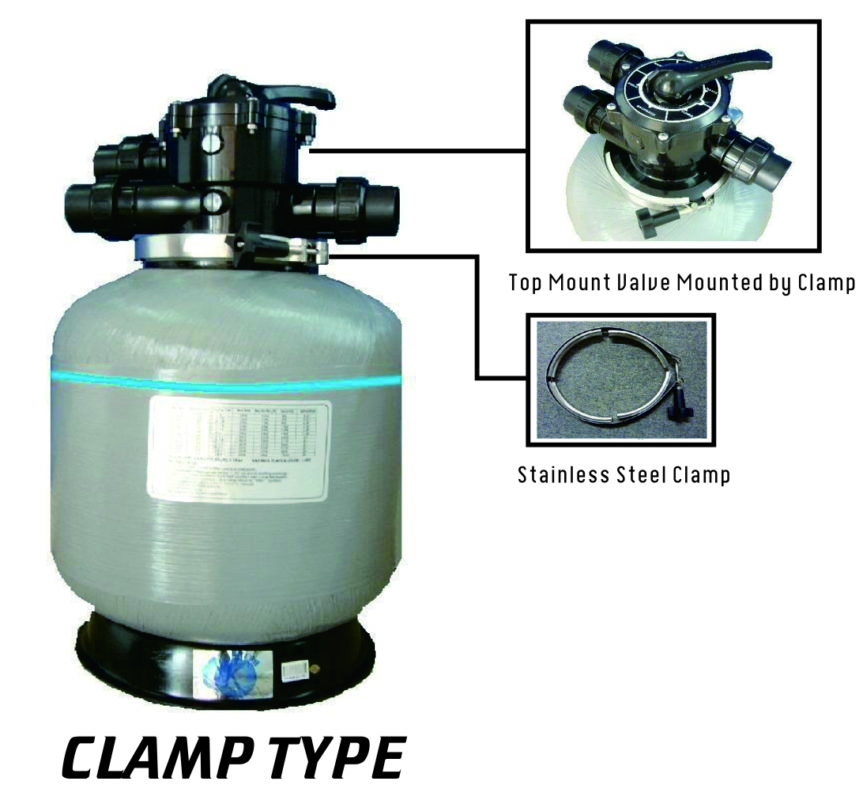

FC Series - Top Mount Clamp Type
FC series (Top Mount) High Performance Fiberglass Filter are manufactured with polyester and glass fiber winding for high resistance and high quality of water filtration.
description
FC series (Top Mount) High Performance Fiberglass Filter are manufactured with polyester and glass fiber winding for high resistance and high quality of water filtration.
It is economic, high performance filters for private, fish pool, Jacuzzi and public pools, equipped with
- Multi-port 6 way valve: filtration, backwash, rinse recycle, drain and close.
- Manometer, air-bleed system
- Stainless Steel Flange-clamp design
- Maximum working pressure 2.5 bars
Black Valves and clamps are available.
Other models details of FC Series – Top Mount Clamp Type
| REF.Model | Diameter mm | Connection mm | Flow m3/H | Surface Area M2 | Efficiency % | Sand Weight KG | Pressure KG/CM2 | H MM | C MM | G MM | F MM | E MM |
| FC-018 | 400 | 48/50 | 4-6 | 0.126 | 75 | 70 | 2.5 | 723 | 596 | 350 | 494 | 560 |
| FC-019 | 450 | 48/50 | 5-7.5 | 0.159 | 75 | 80 | 2.5 | 814 | 685 | 350 | 571 | 637 |
| FC-020 | 500 | 48/50 | 6-9.5 | 0.196 | 75 | 100 | 2.5 | 909 | 780 | 460 | 645 | 711 |
| FC-021 | 600 | 48/50 | 8.5-13.5 | 0.283 | 75 | 180 | 2.5 | 979 | 850 | 460 | 729 | 795 |
| FC-022 | 750 | 60/63 | 13.5-21 | 0.442 | 75 | 250 | 2.5 | 1164 | 1015 | 580 | 868 | 939 |
| FC-023 | 900 | 60/63 | 19-30 | 0.636 | 75 | 350 | 2.5 | 1289 | 1140 | 770 | 994 | 1065 |
